8312 Expanded IP Paging Adapter

8312 Expanded IP Paging Adapter
8312 Expanded IP Paging Adapter
8312 Expanded IP Paging Adapter
8312 Expanded IP Paging Adapter
8312 Expanded IP Paging Adapter
8312 Expanded IP Paging Adapter
8312 Expanded IP Paging Adapter

8312 Expanded IP Paging Adapter

Bridge UC platforms, paging systems, radio users, and automated communication workflows.

Building on the SIP paging, scheduling, amplifier integration, and smart relay capabilities of the Algo 8301 Paging Adapter & Scheduler, the 8312 Expanded IP Paging Adapter adds integration (e.g., Motorola Curve), separate paging and radio audio outputs, and twelve additional relay sensor inputs.

Please note you may need the 79-00062 Radio Connector Cable for this product.

Key Features

  • PoE network connection
  • Integration with UC platforms and SIP PBXs via SIP
  • Handheld radio integration
  • Radio-to-PA audio workflows
  • UC-to-radio audio workflows
  • Multiple relay inputs
  • Independent paging and radio audio control
  • Local wired trigger support
$595.00 USD
- +
SKU: 8312 Category:
Or

Contact us to find a Distributor or Reseller

PS
Product
Sheet
UG
User
Guide

Description

Unified Paging, Radio, and UC Communication

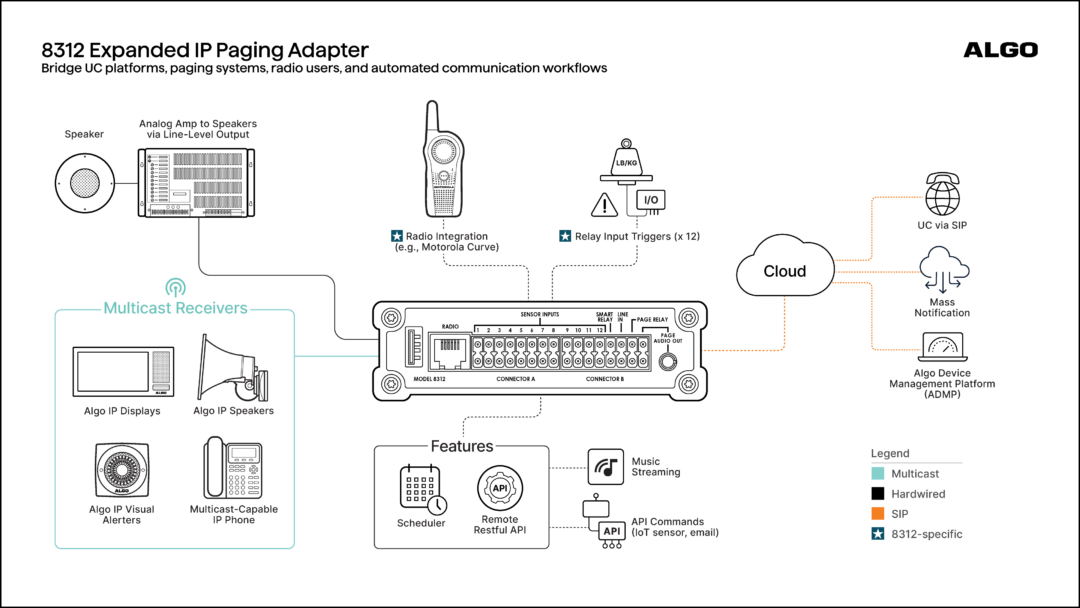

The 8312 Expanded IP Paging Adapter builds on the SIP paging capabilities of the 8301 Paging Adapter & Scheduler, combining UC-based voice paging, scheduling, legacy amplifier integration, handheld radio integration, and relay-triggered workflows in a single network-connected device.

Distribute audio from UC platforms to overhead paging systems, compatible radio users, or both simultaneously. By bridging UC communications, PA infrastructure, and handheld radio systems, the 8312 extends critical messages across a wider range of physical environments and operational teams.

Optimized to integrate base station-free handheld radio systems, the 8312 is compatible with Motorola Curve radios. For radio systems that use a base station, the Algo 8301 may also be used. Contact Algo to discuss compatibility with other handheld radio systems.

Expanded Inputs for Sensor-Triggered Audio Workflows

The 8312 adds twelve relay sensor inputs, in addition to the one standard smart relay, to support more event-driven communication workflows. Connect contact closures, buttons, weight sensors, switches, or other operational triggers to initiate pre-recorded messages, paging events, SIP calls, endpoint actions, strobe activation, and other automated responses.

By combining SIP paging, integration, amplifier connectivity, scheduling, smart relay control, and sensor-triggered actions into one device, the 8312 simplifies deployment while expanding automated IP communication workflows.

The Algo 8312 is optimized for integration with base station-free handheld radio systems that operate peer to peer. By connecting to a compatible donor radio, the 8312 can extend SIP audio across the radio network. Motorola Curve is currently supported, while integration with other handheld radio systems may also be possible depending on system compatibility and cabling requirements. Contact Algo to discuss compatibility with other handheld radio systems.

To learn more, view the following resources:

– IP Paging Adapter Comparison

– Bridging Base-Station-Free Handheld Radios and SIP Paging with the Algo 8312

Specifications

Power
Power SourcePoE (IEEE 802.3af Class 0) 48 V, 15.4 W
Max Power (at Device)4 W
Idle Power2 W
SIP
SIP Extensions50 Page (Capable of talkback when appropriate speaker andmicrophone connected)
10 Emergency Alert
10 Ring
SIP Signalling/Transport ProtocolsUDP, TCP, RTP
SecurityTLS, SRTP, Mutual Authentication
Audio CodecsG.711 u-law, G.711 A-law, G.722 Wideband
Multicast
RTP MulticastSend and Receive 50 Zones
Audio CodecsG.711 u-law, G.711 A-law, G.722 Wideband, Opus Fullband
Compatibility
Third PartiesRESTful API
Poly Group Page
Singlewire InformaCast (additional license required)
Intrado OneAlert
Microsoft Teams
Configuration & Provisioning
ConfigurationWeb interface or provisioning server
Web Interface HTTP, HTTPS
ProvisioningTFTP, FTP, HTTP, HTTPS
DHCP Options 66, 150, 160
Reboot via SIP ‘check-sync’
ZTPSupported
SupervisionCompatible with Algo Device Management Platform (ADMP), Algo 8300 IP Controller, any third-party SNMP monitoring software, and RTCP
Networking
NetworkingIPv4, IPv6, DHCP, VLAN, MDNS
Link LayerLLDP, CDP
SecurityIEEE 802.1X
QoSDSCP
NAT STUN, TURN, CRLF Keep Alive, SIP Outbound
Address ResolutionDNS, SRV Record
RedundancySecondary and tertiary SIP server
TimeNTP Server (up to four)
Audio
MicrophoneConnection available for external microphone
Audio Output ChannelSelectable: Page Output Only, Radio Output Only (MotorolaCurve radio system), or Both
Audio Memory & Format1 GB audio storage for WAV or MP3 files
Audio ControlsVolume (separate controls for Page and Radio), AGC, Latency,LF Cut
Anti-Feedback DelayCache to memory and release
Audio DelayProgrammable 1-1000 ms synchronization delay
Input/Output
Page Audio OutTwo options:
1. Terminal block to external amplifier. Balanced and isolated wire pair output. Polarity independent
2. 3.5 mm jack to external amplifier. Balanced and isolated output
Page RelayRelay output. Max 30 V 50 mA (normally open)
Line InTerminal block to external audio source. Balanced and isolated wire pair input. Polarity independent
Smart RelayRelay input. Normally open or normally closed dry contact with supervision. Compatible with Algo 1211 Single Button, 1212 Dual Button, 1202 Call Button, 1203 Call Switch, 1204 Volume Control, 1205 Audio Interface, 2507 Ring Detector, EOL resistor termination
12 Sensor InputsTerminal block inputs. Normally open or normally closed dry contact
USBUSB-A connector (reserved for future use)
Aux In3.5 mm jack for analog line level input for audio input. Non-isolated
Aux Out3.5 mm jack for analog line level output for compatible PC speakers or headset output with microphone input. Non-isolated
Smart Relay Input Current Draw Detection ThresholdActiveIdleTamper
Normally Open> 4 mA< 4 mAN/A
Normally Open with Supervision> 20 mA4 - 20 mA< 4 mA
Normally Closed< 4 mA> 4 mAN/A
Normally Closed with Supervision4 - 20 mA> 20 mA< 4 mA
Nominal 12 V source, current limited to 40 mA
Typical supervision resistor value = 1 kOhm
Environmental & Mechanical
Environmental 0 to + 40° C (32 to 104° F); 10-95% RH non-condensing. Dry indoor locations only.

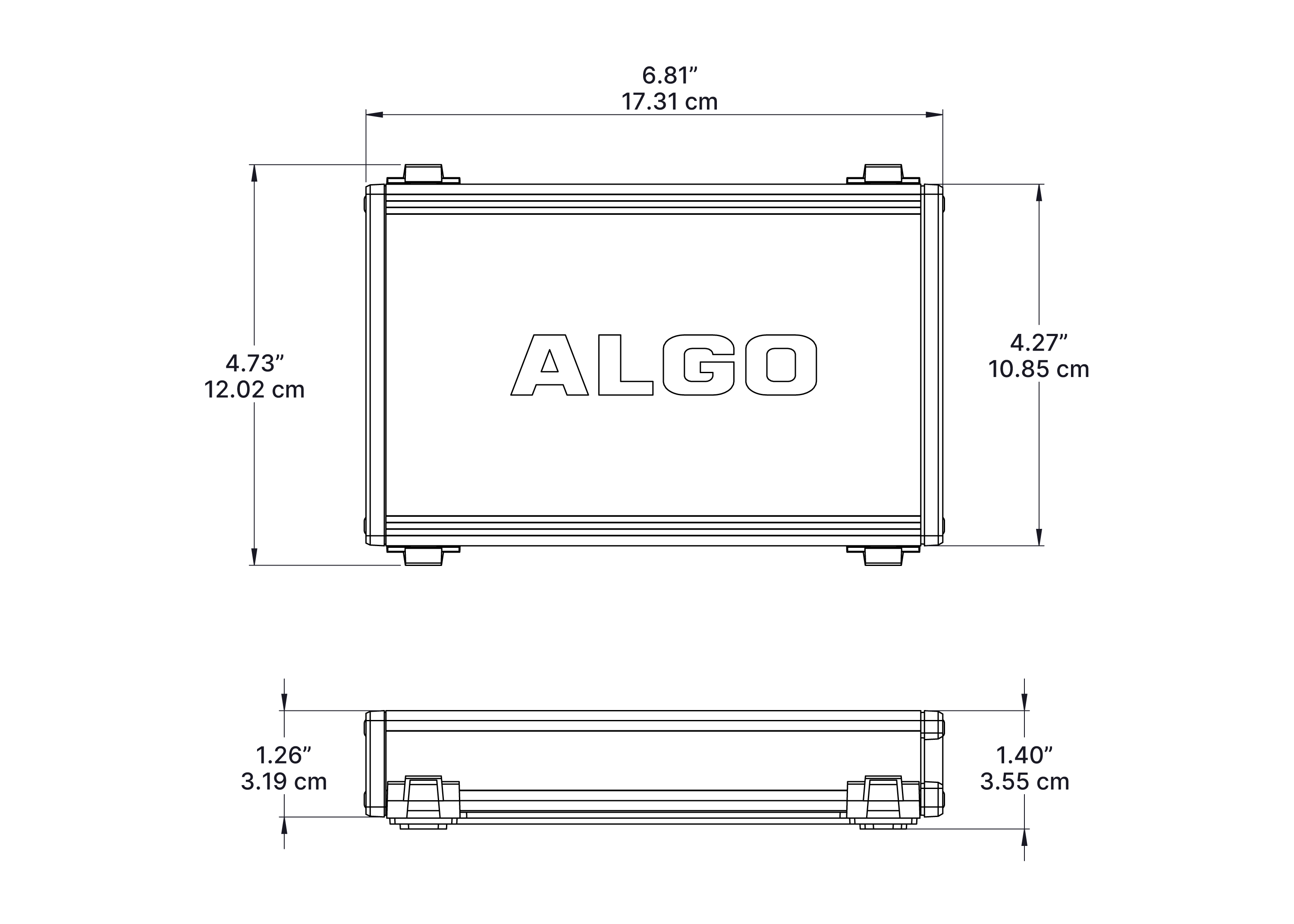

Dimensions (Product)6.8” × 4.3” × 1.3” (17.3 cm × 10.9 cm × 3.2 cm)
Weight (Product)0.9 lbs (0.4 kg)
Weight (Shipping)1.5 lbs (0.7 kg)
MountingSnap mounting bracket included
Compliance
RoHS, CE, FCC Class A, CISPR 22 Class A, CISPR 24, CSA/UL (USA & Canada)

Applications

  • Extend store paging announcements to staff using compatible radio systems (e.g., Motorola Curve)
  • Broadcast announcements to parking lots, loading zones, stock rooms, garden centers, and outdoor service areas
  • Trigger prerecorded audio messages from retail shelf weight sensors or theft-detection systems
  • Route radio-originated announcements through facility paging speakers
  • Connect Cisco, Webex, or other UC platforms to paging and radio communication workflows
  • Replace custom-built relay and paging integrations with a centralized adapter
  • Initiate notifications from panic buttons, door contacts, motion sensors, or operational equipment
  • Distribute announcements through overhead paging systems, compatible radio users, or both simultaneously

Compatible Accessories

Algo 1202 Call Button

1202 Call Button

Info
1203 panic button for schools

1203 Call Switch

Info
Algo 1204 Wall Mount Volume Control

1204 Volume Control

Info
Algo 1205 Audio Interface

1205 Audio Interface

Info
Algo 2507 Ring Detector

2507 Ring Detector

Info

79-00062 Radio Connector Cable

Info

Resources

Documentation

Product Sheet

User Guide

IP Paging Adapter Comparison

Paging Adapter Amplifier Guide

Provisioning Guides

8312 Firmware

Network Device Locator



Firmware

Please note no firmware updates have been issued for this product since its launch.

FAQs

How does the Algo 8312 connect handheld radios to an overhead paging system?

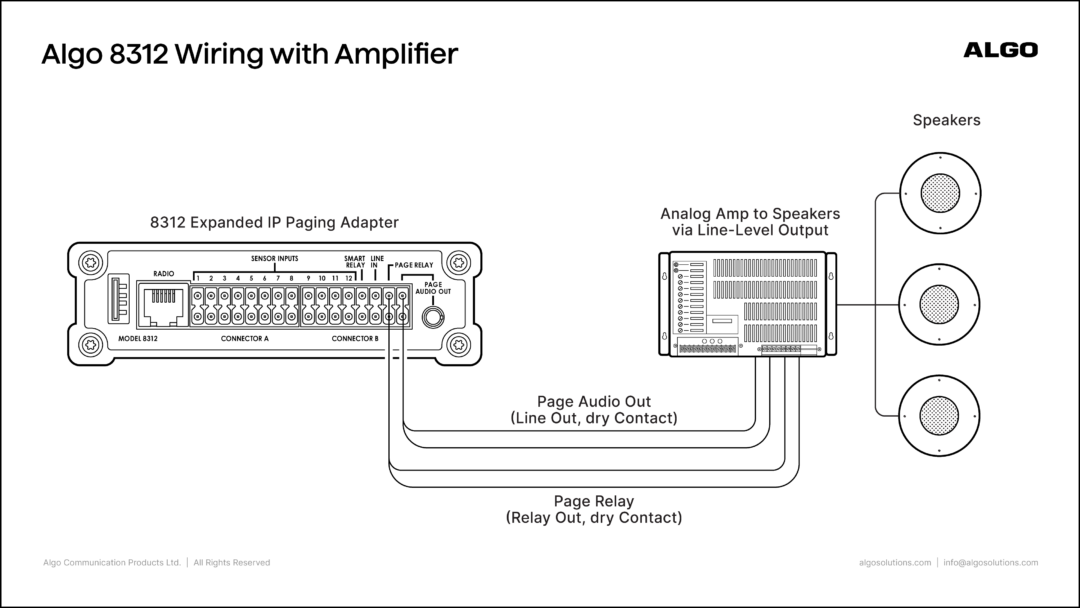

The Algo 8312 connects to an analog amplifier through its line-level audio output and to a compatible donor radio. A SIP announcement can then be distributed through both the overhead paging system and the radio network.

What is the difference between the 8312 and 8301?

The Algo 8312 shares the same form factor as the Algo 8301 Paging Adapter & Scheduler and builds on many of the same core capabilities, including:

  • SIP-based paging
  • Amplifier integration
  • Smart relay control
  • Built-in scheduling
  • RESTful API support
  • Music streaming
  • Algo Device Management Platform (ADMP) supervision

What differentiates the 8312 is three additional capabilities that support more advanced communication and automation workflows:

  • Base-station-free handheld radio integration: Connects to a compatible donor radio, activates its push-to-talk function, and transmits SIP audio across the peer-to-peer radio network.
  • Twelve configurable sensor inputs: Enables external devices such as buttons, switches, contact closures, and sensors to trigger automated communication workflows.
  • USB port: Provides flexibility to support additional capabilities in the future.

Can I use the 8312 with radio systems that have a base station?

Although it may be possible to use the 8312 with radio systems that have a base station or control unit, the Algo 8301 Paging Adapter & Scheduler  is generally the preferred, more cost-effective solution for those deployments.
