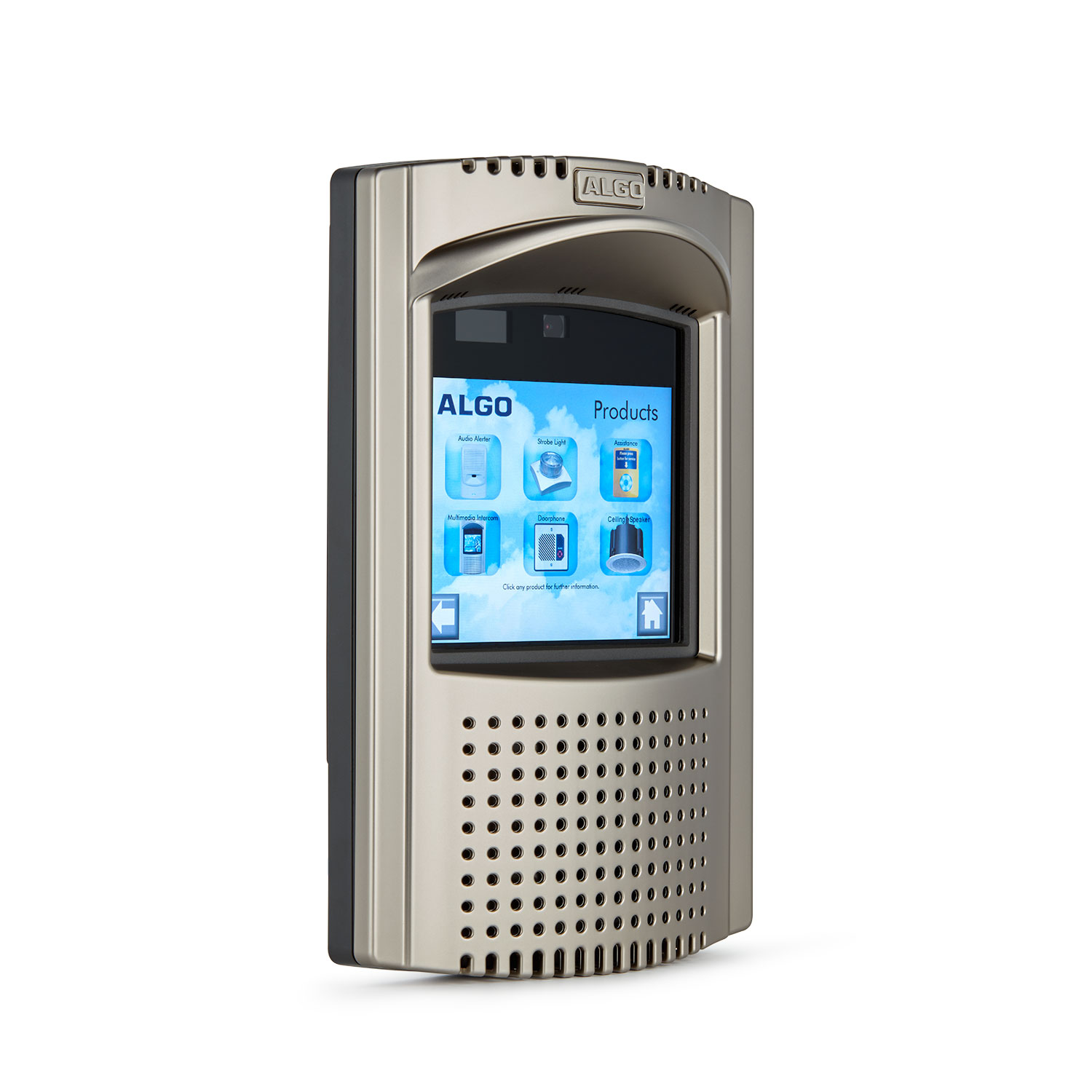

8036 IP Multimedia Intercom

8036 IP Multimedia Intercom

IP Video Intercom with Touch Screen for Door & Gate Entry, Unattended Lobby & Kiosk Applications – PoE

The PoE 8036 SIP Multimedia Intercom is an IP video intercom combining the functionality of an IP phone, security camera, and interactive kiosk via a touch screen interface. This IP video intercom is outdoor-rated and is also a fully compliant 3rd party SIP endpoint. As a result, the 8036 is compatible with most hosted / cloud and premise-based VoIP telephone systems.

Generally, the 8036 is most commonly deployed at public access locations including secure door/gate entrances and unattended lobby areas, particularly where business branding, kiosk, or multiple call option information is required to be displayed for hands-free audio/video visitor communication is required (e.g, multi-tenant professional office, airport, hotel/resort, hospital ward, gated entrance, etc.).

The 8036 SIP Multimedia Intercom is UL/CSA, FCC and CE certified.

$2,595.00 USD
- +
SKU: 8036 Category:

Features

  • Wideband HD voice for high intelligibility speech.
  • Initiates or accepts intercom calls.
  • Dual microphones.
  • Outdoor rated – IP54 weather resistant.
  • 5.7″ sunlight viewable graphic capacitive touch display.
  • PoE (IEEE 802.3af).
  • Seamless relay activation via telephone keypad for secure door or gate entry using 8063 IP Door Controller.
  • Configuration via user friendly web interface or auto-provisioning.
  • H.264 video one or two-way support via video phone or web browser.

Description

The 8036 is an outdoor rated IP video intercom / doorphone. The endpoint is powered via PoE  (IEEE 802.3af). A surface mount bracket is included for easy wall installation. The product is CSA/UL, FCC and CE certified.

Interactive Touch Display

The 5.7″ sunlight viewable graphic capacitive touch display of the 8036 is web configured via a simple GUI. The touch screen can display any content of text and images including graphics for keypad entry, scroll list, or icon input. Where it is desired to better serve visitors and guests with helpful information, promote business branding, and add video security to intercom requirements, the 8036 IP intercom provides a unique public interface in an elegant form factor to make a great first impression.

Algo 8036

One or Two-Way Video Calling

One or two-way video calling is supported in the 8036 IP video intercom. Graphic icons with multilingual menus and SIP-based speech and video communication make the 8036 ideal for serving international, multilingual or hearing impaired clients, for example.

  • Unattended lobbies
  • Security monitoring
  • Employee access/visitor greeting
  • Enhanced courtesy phone
  • Multi-tenant gate or entrance intercom
  • Guest service
  • Visitor assistance kiosk

Customizable Intercom Content & UC Integration

Intercom screen content can be created easily using the 8036 web GUI. Upload an image such as a corporate logo for a start page, and create the navigation menus leading to additional pages, scroll lists and more. Page images and icons may be created from photographs, maps, or images using graphics editing tools.

Once registered as an endpoint, the 8036 IP video intercom can interact with any device, phone or client that is connected to the UC platform, thereby providing maximum user flexibility to efficiently communicate with visitors and guests.

Algo 8036 outdoor rated IP video intercom doorphone
The Algo 8036 can initiate a two-way SIP call as either audio-only or audio and video. The video stream can be conveyed to a phone or a web browser.

Algo 8036 outdoor rated IP video intercom / doorphone
When requested, the 8036 with the optional 8063 can unlock a door trigger when a DTMF tone is provided by a phone receiver.





Benefits of the PoE Algo IP Video Intercom

  • Network managed and supervised SIP endpoint.
  • Eliminates FXS port or ATA.
  • PoE (IEEE 802.3af) for plug and play network connectivity.
  • Wideband G.722 HD voice audio for clarity and intelligibility.
  • Suitable for public access and outdoor environments.
  • Communicate with graphics, text, speech and video.
  • Create custom content via a simple web GUI.
  • Improve corporate branding, visitor impression and communication capability.

Specifications

Power
Power InputPoE (IEEE 802.3af Class 0) 48V, 12.95W
Max Power12.95W
Idle Power5-9W, depending on screen brightness
SIP
SIP Extensions1 Intercom Extension
SIP Signalling/Transport ProtocolsUDP, TCP, TLS, RTP
Configuration & Provisioning
ConfigurationWeb interface or provisioning server
Web InterfaceHTTP, HTTPS
ProvisioningTFTP, FTP, HTTP, HTTPS
DHCP Options 66, 150, 160
Reboot via SIP ‘check-sync’
SupervisionCompatible with any third party SNMP monitoring software or the Algo 8300 Controller.
Networking
NetworkingIPv4, DHCP, VLAN
Link LayerLLDP, CDP
QoSDSCP (SIP, RTP, RTCP)
NATSTUN, TURN, CRLF Keep Alive, SIP Outbound
Address ResolutionDNS, SRV Record
RedundancySecondary and tertiary SIP server
TimeNTP Server (up to four)
Audio
SpeakerWideband 8 W
MicrophoneDual Wideband
Audio CodecsG.711 u-law, G.711 A-law, G.722 Wideband
Media Storage2 Gbyte
Video
Video CodecsH.264 video (CIF resolution), JPEG still image
Camera1/3” (8.5mm) wide VGA CMOS Digital Image Sensor; 6.0 x 6.0μm pixel size for low light performance; 110dB dynamic range
Presence DetectionArea reflective 80cm range, invisible light beam
Display
LCD DisplayActive TFT 5.7” (14.5cm) color VGA, 80° viewing, sunlight readable, 1000:1 contrast, and 800 cd/m2 backlight
TouchscreenProjected capacitance touch sensor optically bonded to LCD display; H7 hardness
Environmental & Mechanical
Environmental-30 to +40° C (-22 to 104° F) IP54 weather resistant
Dimensions (Product)10.75″ x 7″ x 3″ (27.3cm x 17.8cm x 7.6cm)
Weight (Product)2.8 lbs (1.3 kg)
Weight (Shipping)4.7 lbs (2.1 kg)
Compliance
RoHS, CE, FCC Class A, CISPR 22 Class A, CISPR 24, CSA/UL (USA & Canada)

Applications

  • Unattended lobby of a multi-tenant building or office.
  • Commercial and residential gate entrance or parking lot.
  • Secure in-building access points and areas (e.g. hospital maternity ward, lab, suite, etc.).
  • Hotel concierge or airport kiosk to provide multi-lingual support and assistance.
  • Plant, utility, or facility where assets are under tight security and require visual and audible verification for visitor entry.
  • To meet ADA or similar compliance for hearing impaired requiring a two-way video endpoint at secure entrances.
